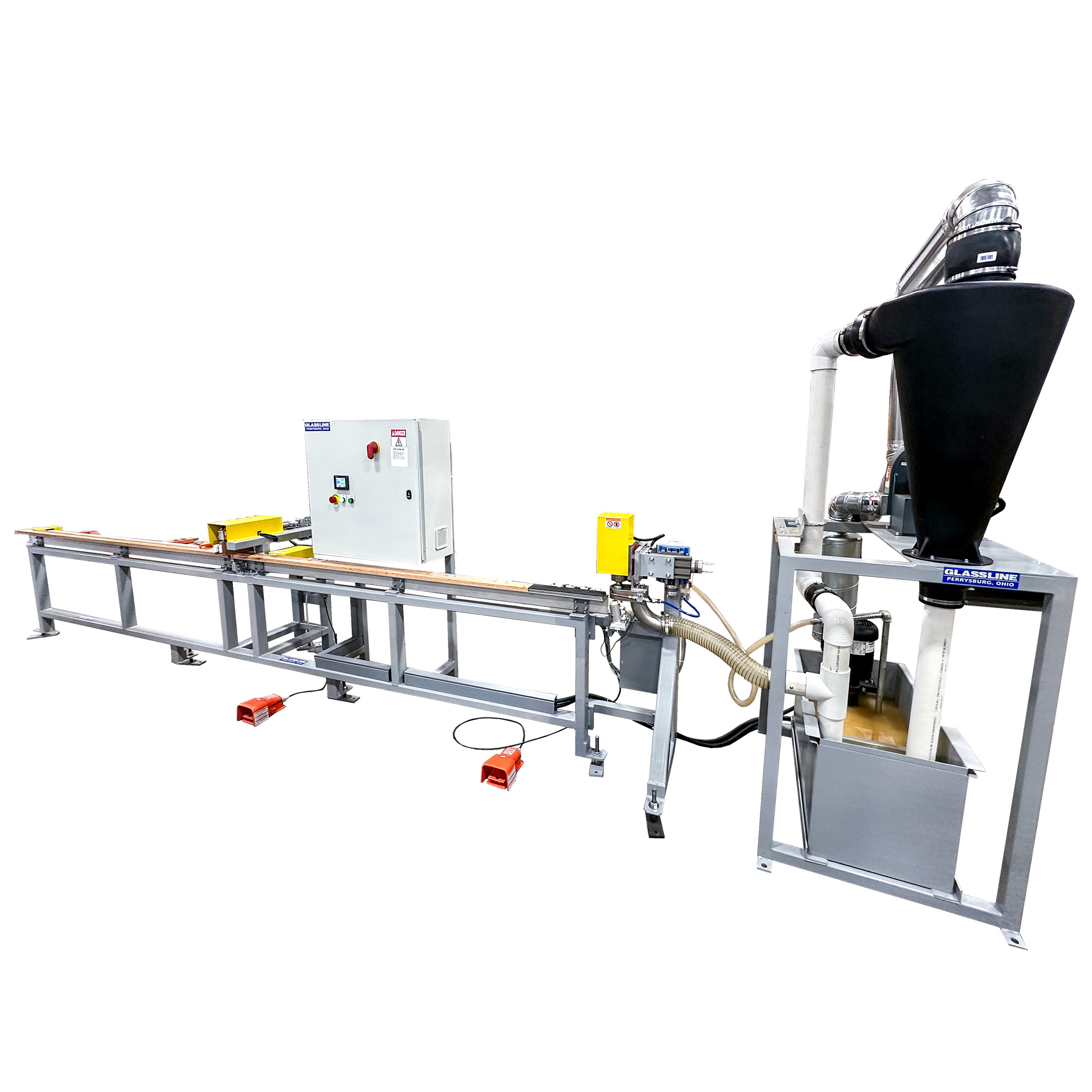

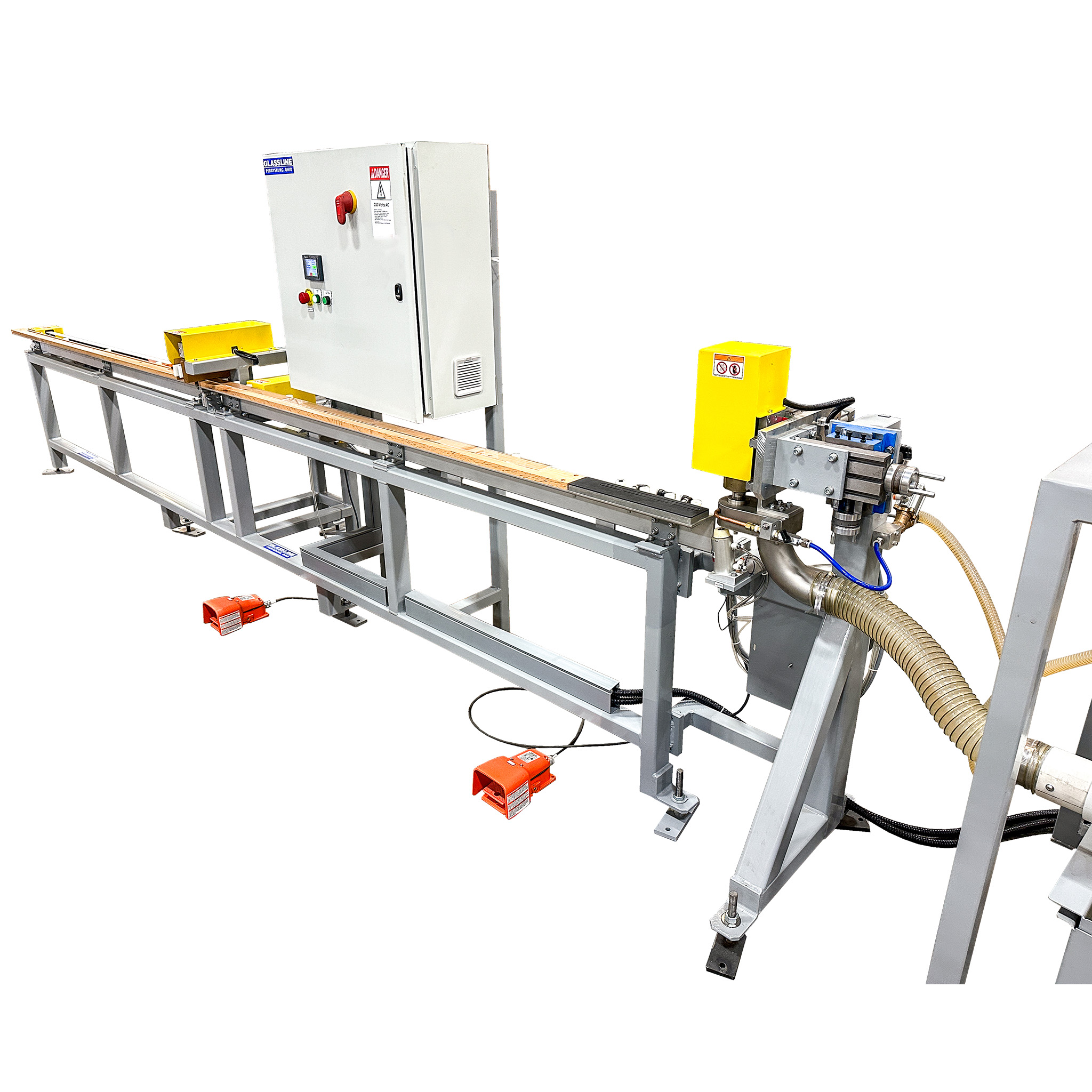

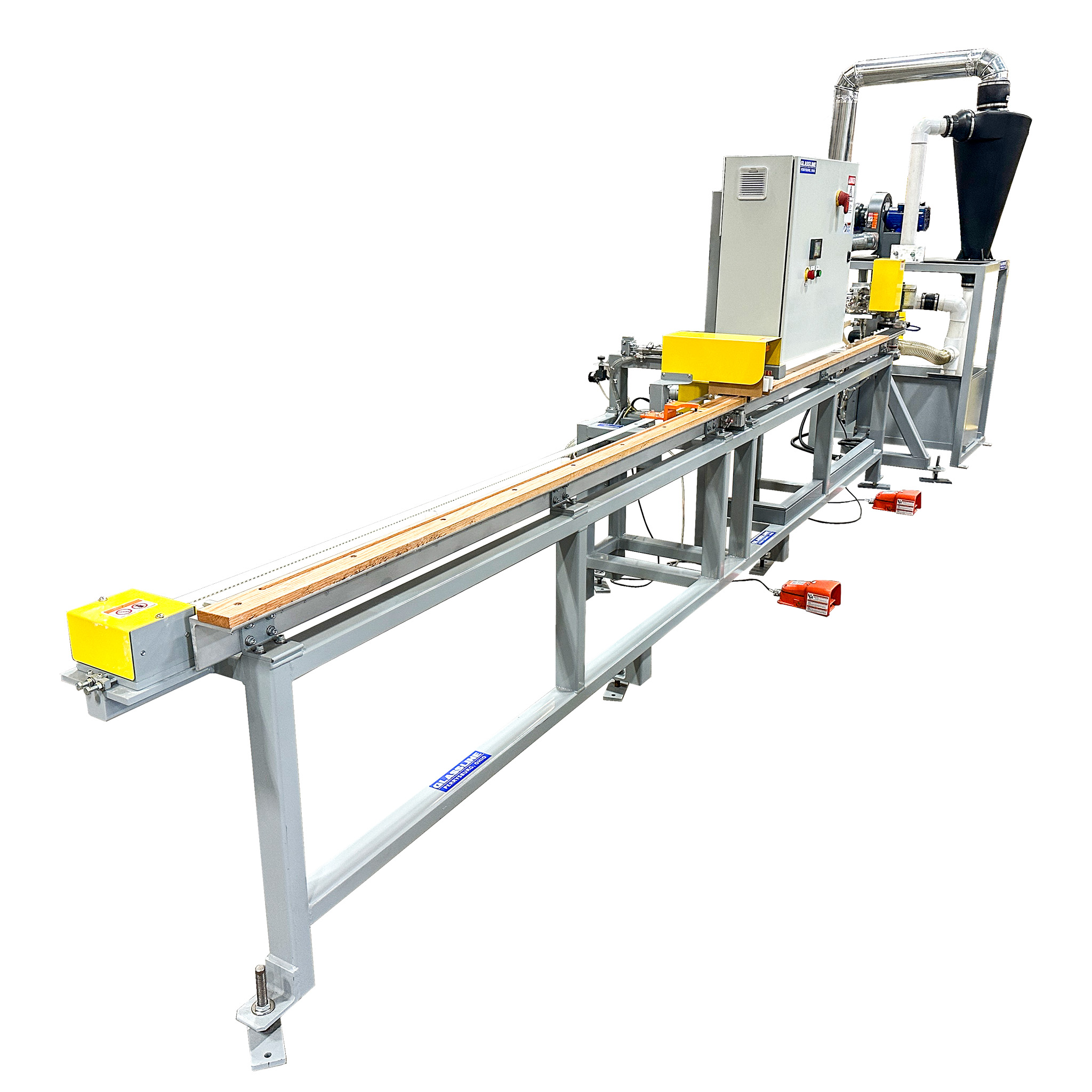

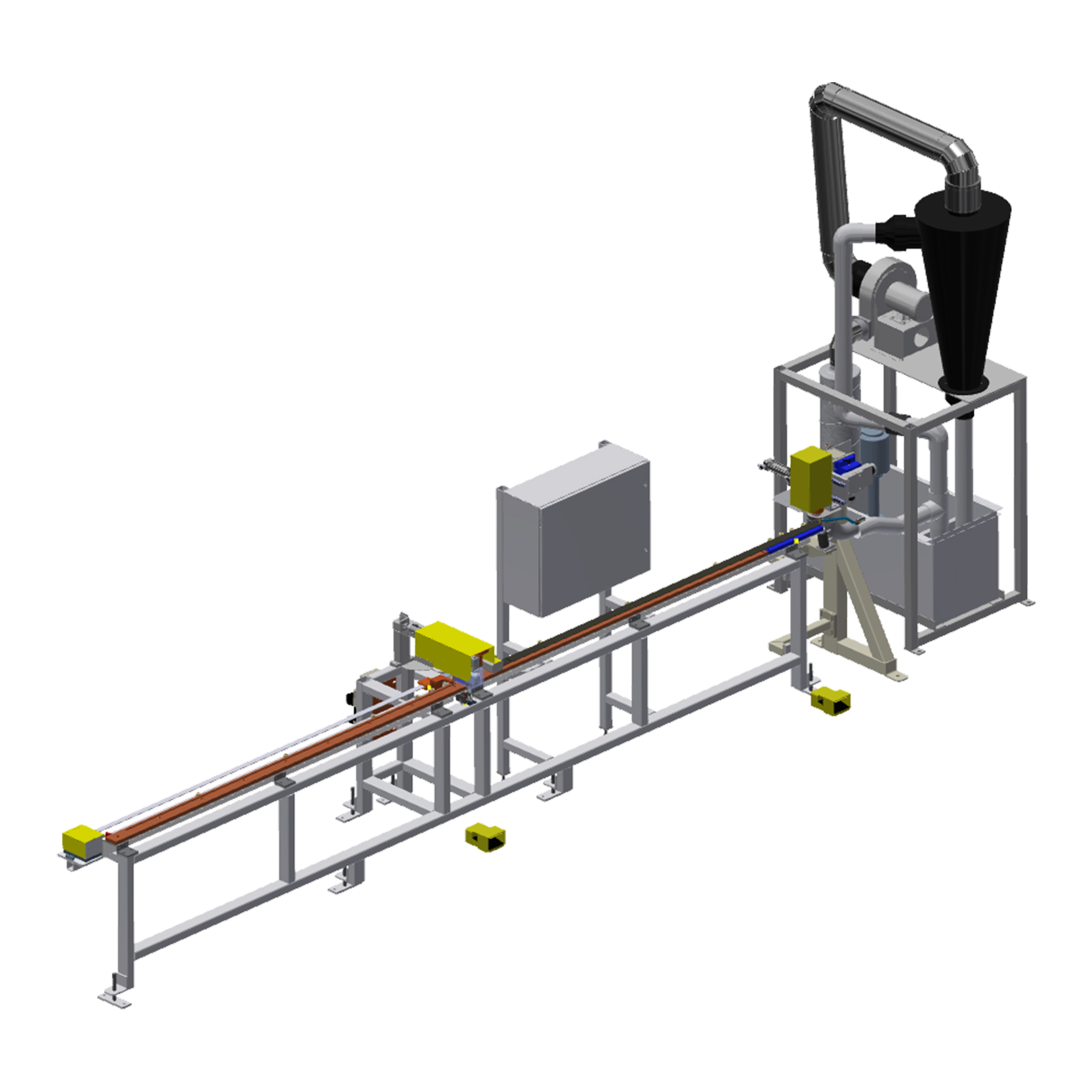

Borosilicate Glass Cutter, Break and Grind Machine
(Cut-Breakout with Grind)
The Borosilicate glass cutter machine is engineered for efficiency and precision. This system is designed to transform glass strips into finished, seamed pieces through a controlled, operator-driven workflow. The line integrates two critical fabrication stages into one seamless workflow: Precision Cutting, which rapidly splits large strips into manageable, project-specific dimensions, and Professional Seaming that delivers finish edges with a high-quality seamed grind for safety and durability.
- Spec
- Features
- Applications
Spec
Minimum Part Size: 51.3mm
Maximum Part Size: 2300mm
Part Thickness: 3.3mm
Features
The Breakout Cutter
Designed for stability and accuracy, the Breakout Cutter gives the operator total control over the initial sizing process.
Secure Handling: Once the glass is loaded onto the table, the system engages to hold the sheet firmly in place.
Intuitive Operation: The operator maintains physical control of the glass while engaging a tactile footswitch to activate the cut head.
Clean Breaks: The mechanical cut head extends with precision, ensuring a clean, straight split every time.
The Breakout Grind
Achieve a professional finish with our dedicated grinding station. This unit utilizes advanced vacuum technology to ensure the glass remains stationary during the seaming process.
Integrated Locators: A footswitch-activated locator ensures the glass is perfectly positioned before the grind begins.
Vacuum Grip Technology: A powerful vacuum plate secures the glass, preventing vibration or shifting that could compromise the edge quality.
Precision Seaming: The grinder spindle moves with a controlled retraction to create a smooth, seamed edge, automatically releasing the vacuum once the cycle is complete for easy unloading.
Applications
Cutting borosilicate glass for Laboratories/pharmaceuticals.
Edging borosilicate glass for consumer goods.
Grinding borosilicate glass for electronics and industrial manufacturing.
